Gas Supply Accessories
Oxygen and Gas Supply Regulators
Regulators are used to connect Airon products to E or D size cylinders. Regulators are MRI Compatible.
P/N 21051 – MRI compatible, high-pressure DISS port only
P/N 21052 – Medical Air regulator, high-pressure DISS port only
(Photos represent the manifolds for use with O2)
Manifold System for Stands
The MRI compatible Manifold Systems are designed to allow the ventilator to be powered from either a wall source or medical gas cylinders. The manifold blocks mount onto the Mobile Stand and have appropriate DISS fittings for input and output of gas to the ventilator. As medical gas enters any of the three input fittings of each manifold block it flows to the ventilator. All systems include 18-inch (0.5 m) and 10 foot (3 m) high-pressure hoses as needed for proper setup. (Items sold Internationally will be sold with ISO hoses.)
- The 21055 / 21054 / 21057 / 21059 Manifold Systems comes packaged with MRI compatible “D / E” cylinder regulators and one-way check valves.
- The 21058 / 21050 / 21060 / 21050a Manifold System is designed for use with tanks that have built-in regulators (ex. Airgas Walk-O2-Bout®) and includes manual shut off valves.
P/N 21055 – 1 manifold block (O2) with 2 oxygen regulators, and USA colored hoses. Use P/N 21057 for ISO colored hoses
P/N 21058 – 1 manifold block (O2) with 2 manual shut off valves, and USA colored hoses. Use P/N 21060 for ISO colored hoses
P/N 21054 – 2 manifold blocks, one each for air and O2 with 2 oxygen and 2 air regulators (for use with the pNeuton mini). Use P/N 21059 for ISO colored hoses
P/N 21050 – 2 manifold blocks, one each for air and O2 with 4 manual shut off valves (for use with the pNeuton mini). Use P/N 21050a for ISO colored hoses
High Pressure Oxygen and Medical Air Hoses
USA Colored Oxygen Hoses
The High-Pressure Oxygen Hose is used to connect the pNeuton or MACS to an oxygen source. Hoses are MRI compatible (except for P/N 21085) and have female DISS connections on each end.
P/N 21061 – 3 foot (0.9 m)
P/N 21068 – 8 foot (2.4 m)
P/N 21082 – 12 foot (3.7 m)
P/N 21069 – 30 foot (9.1 m)
P/N 21085 – 3 foot (0.9 m), coiled (extends to 15 foot – 4.6 m), not MRI compatible
USA Colored Medical Air Hoses
P/N 21062 – 3 foot (0.9 m)
P/N 21065 – 8 foot (2.4 m)
ISO Colored Oxygen Hoses
P/N 21067 – 2.4 meters, ISO white, DISS connection on one end, no connector on the other end
ISO Colored Medical Air Hoses
P/N 21070 – 2.4 meters, ISO black with white striping, DISS connection on one end, no connector on the other end
Oxygen Quick Connect Couplers
Quick Connect Couplers are used in ambulances to allow a quick change from an oxygen cylinder to a wall oxygen outlet. Using an oxygen hose from a pNeuton or MACS with a matching quick connect fitting, the oxygen source can be unplugged from the tank with a quick twist and plugged into the wall source with minimal disruption of life support. These couplers are not MRI compatible.

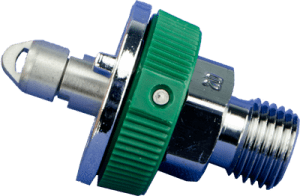

P/N 21100 – Ohmeda style
P/N 21101 – Chemtron style
Oxygen 90 Degree Coupler
A 90-degree elbow coupler to connect to the oxygen input of all products. The coupler allows the oxygen hose connection to come out the bottom or side of the device. It has male and female DISS fittings. This coupler is not MRI compatible.
Oxygen Quick Connect Fittings
Quick Connect Fittings are attached to standard high-pressure oxygen hoses. These fittings allow a quick attachment to a matching oxygen outlet without having to screw/unscrew a standard DISS connection. The fittings are not MRI compatible.
P/N 50347 – Ohmeda style

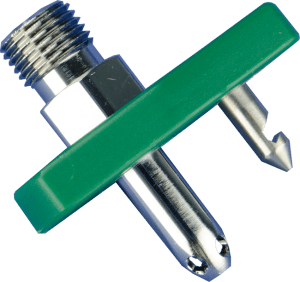

P/N 50348 – Chemtron style
Oxygen and Medical Air Cylinders
P/N 21071 – “E” size (680 L fill capacity), MRI compatible (Not Shown)
P/N 21072 – Medical Air “E” Size (680 L fill capacity), MRI compatible (not shown)
P/N 21073 – “D” size (425 L fill capacity), with toggle valve, not MRI compatible
