MACS epic CPAP System

MACS epic

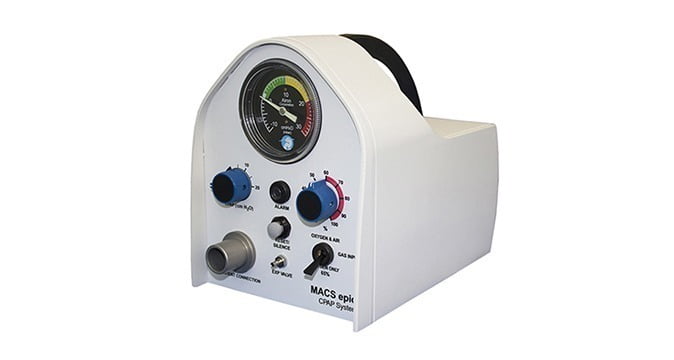

MACS epic CPAP System, Critical Care CPAP for Hospitals and Transport

The MACS epic is designed specifically to address the unique requirements of Continuous Positive Airway Pressure (CPAP) within the hospital, including dynamic breathing patterns, flow demand, and higher oxygen needs.

The MACS epic enhances patient care and staff efficiency delivering CPAP with accurate patient monitoring, reliable alarms, and oxygen control 21 – 100%, or, with a simple flip of a switch, you can transport with an oxygen e-cylinder option for your convenience.

CPAP mode with demand flow automatically adjusts flow to meet changes in patient’s needs for maintaining airway patency and decreasing work of breathing

MACS epic meeting patient needs for respiratory support
Emergency Department

  • Supports acute pulmonary exacerbation
  • Advances care for congestive heart failure

Post Anesthesia

  • Airway support for sedation anesthesia
  • Pressure supported oxygenation for shallow breathing

Intensive Care

  • Weaning protocol for respiratory conditions
  • Reduces work of breathing post intubation

Continuum of Care

  • Provides early intervention for respiratory support to reduce needs for intubation
  • Nocturnal CPAP support for respiratory muscle mechanics

Benefits for the Patient

  • Low patient Work of Breathing (WOB) with peak flow of up to 140 L/min to meet patient needs
  • Adjustable oxygen delivery from 21% to 100% to precisely match patient oxygen requirements
  • Low-profile, easy-seal mask reduces facial pressure
  • Audible alert reminds patient of mask leak/patient disconnect to maintain CPAP therapy
  • Early intervention for respiratory support in emergency care or within the general hospital environment

Benefits for the Healthcare Provider

  • Calibrated CPAP control with automatic sensitivity for changing patient needs
  • Gas input options to deliver precise FIO2 for acute care needs or oxygen only for transport
  • Built-in patient disconnect alarm with remote output to nurse calls systems
  • Manometer to monitor CPAP delivery pressure and patient effort
  • Ease of operation with two controls; CPAP and FIO2
  • Night visible pressure gauge for ease of patient monitoring
  • Monitor CO2 with invasive/non-invasive CPAP support for spontaneously breathing patients
  • Pneumatically powered – no batteries

Benefits for Your Budget

  • Oxygen delivery options for critical care and transport; no external battery required for CPAP transport
  • Standardized economical patient circuits exchanges with the pNeuton Ventilator to save on operating costs
  • Minimal oxygen consumption, even at high oxygen levels, to maximize transport times and lower cost
  • No batteries or electronics decrease preventative maintenance costs

MACS epic P/N 20301


  • All pneumatic design; no batteries required
  • Calibrated CPAP control allows easy pressure adjustment to match patient requirements
  • Demand flow system with automatic flow triggering
    • Peak flow to 140 L/min
    • Eliminates wasted oxygen gas supply
  • Pressure displayed on night viewable manometer
  • Input Gas Supply – 55 psi ± 15 psi (3.8 bar ± 1 bar)
  • Size – 7.5″ H x 6.0″ W x 8.7″ D (19.1 cm x 15.2 cm x 22.1 cm)
  • Weight – 6 pounds (2.7 kg)
  • Classification according to MDD 93/42/EEC: llb
  • Meets International Standards
    • ASTM: F 920-85 Minimum Performance and Safety Requirements for Resuscitators Intended for use with Humans
    • ISO 10651-5:2006 Lung ventilators for medical use – Particular requirements for basic safety and essential performance – Part 5: Gas-powered emergency resuscitators
    • IEC 60529:2001 Degrees of protection provided by enclosures, level IPX4

Control Settings

CPAP: 0 to 20 cmH2O (mbar)
Oxygen Options: 21 to 100% ± 5% (Oxygen & Air source gas),
Gas Input: ± 10% with peak insp. flow > 50 L/min
65% ± 5% for transport (Oxygen source gas only)

Alarm System

  • Patient Disconnect
    • CPAP pressure: less than 5 cm H2O
    • Alarm delay: 22 seconds
    • Alarm silence: 60 seconds
    • Automatic reset when alarm condition resolves
  • Low Gas Supply – Gas Input Oxygen + Air only
    • Input supply pressure differential: 18 to 22 psi
    • Cannot be silenced
  • Remote Alarm Output

User Resources

MACS epic CPAP Product Brochure: English
MACS epic CPAP Operator’s Manual: English

Clinical Articles

CPAP Bibliography: English

Browse Order Information for the MACS epic

20301 MACS epic CPAP System, device only
20311 MACS epic CPAP Startup Kit; everything you need to get started using your new ventilator.
Kit includes:

  • (1) MACS epic CPAP System
  • (1) DISS high pressure oxygen hose, 8 foot (2.4m), green (ISO color hose available)
  • (1) DISS high pressure medical air hose, 8 foot (2.4m), yellow (ISO color hose available)
  • (1) Secure Bed Rail Mount
  • (1) Box of 58011 patient circuits – 6 foot (1.8m), large adult mask / head strap, single patient use, qty 10

Patient Breathing Circuits

58001 Adult / pediatric, disposable, single use, 6 foot (1.8m), qty 15
58006 Adult / pediatric, disposable, single use, 6 foot (1.8m), expiratory filter, qty 15
58011 Adult / pediatric, disposable, single use, 6 foot (1.8m), large face mask / head strap, qty 10
58021 Adult / pediatric, disposable, single use, 6 foot (1.8m), large face mask / head strap, expiratory filter, qty 10

International ONLY
58301 Adult / pediatric, reusable, 6 foot (1.8m), autoclavable, each
58207 Patient Expiratory Valve, autoclavable, each
SAFETY NOTE: Only Airon manufactured patient breathing circuits are approved for use with pNeuton ventilators.

CPAP Masks

CPAP Mask, adult / pediatric, non-vented full face mask, short term use, qty 20
58208 Small
58202 Medium
58211 Large

HERO CPAP Mask, adult / pediatric, non-vented full face mask, single patient use, qty 20
58220 Small
58221 Medium
58222 Large

Mounting Solutions

21001 Mobile Stand, MRI compatible. Includes ventilator mounting plate and two (2) E cylinder holders.
21005 Mobile Stand, MRI compatible. Includes ventilator mounting plate and four (4) E cylinder holders for oxygen & medical air.
21018 Secure Pole / Rail Mount with ventilator mounting plate. *Meets European EN 1789 requirements.

Device Accessories

21031 Remote Alarm
21002 Rigid Wall Test Lung, 1 liter

Gas Supply Accessories

21051 Oxygen Regulator, MRI compatible, high pressure D / E cylinders
21052 Medical Air Regulator, MRI compatible, high pressure D / E cylinders
21054 Manifold, 3 way, standard DISS oxygen connections, 1 oxygen and 1 medical air manifold
21050 Manifold, 3 way, On/Off toggles, 1 oxygen and 1 medical air manifold
21071 Oxygen Cylinder, E size, MRI compatible
21072 Medical Air Cylinder, E size, MRI compatible

Product Manuals

97051 MACS epic CPAP System Operator’s Manual, English
97053 Spanish
97054 French
97055 German
Other languages available.


The pNeuton ventilators/CPAP systems are critical care devices designed for use by healthcare professionals under the direction of a physician or healthcare provider.
