Mounting Solutions

Ventilator – Mounting Systems

Mobile Stands

The Mobile Stand is a 3 foot, 9-inch (1.2 m) tall, MRI compatible stand P/N 21001 is designed to hold the pNeuton ventilators, model S or A and P/N 21005 is designed specifically for the pNeuton mini. Both models’ five wheeled stand uses large, 3-inch (7.6 cm) wheels to aid in stability and ease of movement. Both stands use a mounting plate which allows the user to slide the ventilator on and off the stand for transport.

P/N 21001 (model A) – Holds two “E” size oxygen tanks.

P/N 21005 (mini)

P/N 21005 (mini) – Holds two “E” size oxygen tanks and two “E” size Medical Air tanks.

*Photographs of stands depict all accessories and ventilators. The stand is sold as individual item number without all items depicted in the photograph.

P/N 21016 – Model A

Bed Rail Mount / pNeuton A and pNeuton S

The MRI compatible Bed Rail Mount will allow the pNeuton ventilators to hang from standard critical care bed rails and mobile stretchers. The mount fits securely onto the top of the ventilator and provides a sturdy support during patient transport.

P/N 21016 – Model A

P/N 21017 – Model S

P/N 21017 – Model S

Pole / Rail Mount for mini Ventilator / pNeuton S / MACS epic

Pole / Rail Mount for mini Ventilator / pNeuton S / MACS epic

The Pole / Rail Mounting Bracket allow the mini / pNeuton S / MACS epic to be firmly attached to vertical or horizontal poles, such as IV pole or bed rails. Poles up to 1.25″ (3 cm) can be accommodated. The bracket comes with a sliding plate to allow the device to be removed from the bracket. This sliding plate is the same one that is used on the Mobile Stand. This means the mini / S / epic can be used with both the Mobile Stand and the bracket to ensure secure mounting at various locations. The bracket can also be used in ambulances to meet European EN 1789 requirements.

P/N 21018

Travel Bag – pNeuton S

Travel Bag – pNeuton S

The Travel Bag holds the ventilator securely and safely for transport. The pNeuton can be operated while in the bag. The clear front panel, held closed with Velcro, can be opened to make control adjustments and then closed for operation. The bag has room for a patient circuit, a side pouch for masks or other items, a bright yellow reflective stripe, hand carry strap and a shoulder strap.

P/N 21020

MACS – Mounting Systems

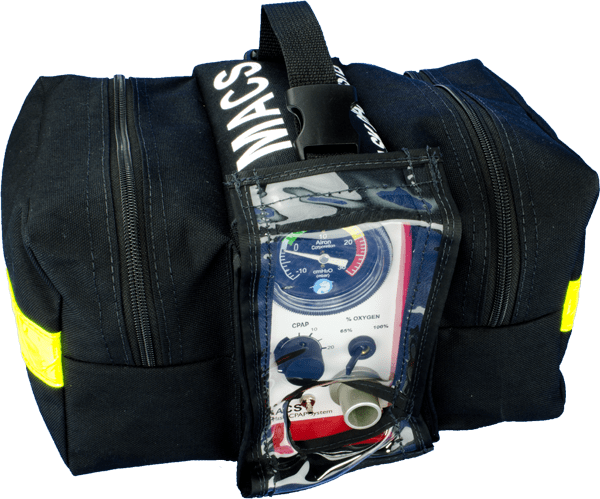

MACS Travel Bag

Travel Bag

The Travel Bags holds MACS securely for transport and ensures it is ready for use. The bag has side pouches to store a patient circuit and oxygen hose. A bright yellow reflective stripe, a hand carry strap, and a shoulder strap are on the exterior. As an added convenience a clear front panel protects the front panel while allowing the MACS to be operated in the bag.

P/N 21021

MACS Protective Boot

Protective Boot

The Protective Boot wraps around MACS to protect it from accidental falls. MACS can be operated while in the boot. A shoulder strap makes it very easy to carry. The Pole Mount and Bed Rail Mount brackets can be used with the Protective Boot.

P/N 21025

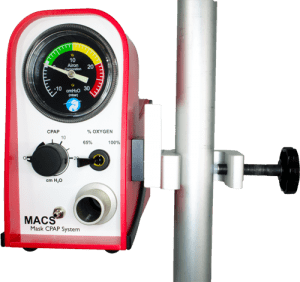

MACS Pole Mounting Bracket

Pole Mounting Bracket

The Pole Mounting Bracket allows the MACS to be firmly attached to a vertical pole, such as an IV pole. Poles up to 1.25” (3 cm) can be accommodated. MACS slides in and out of the bracket which allows portable use. The bracket can be used with the Protective Boot.

P/N 21040

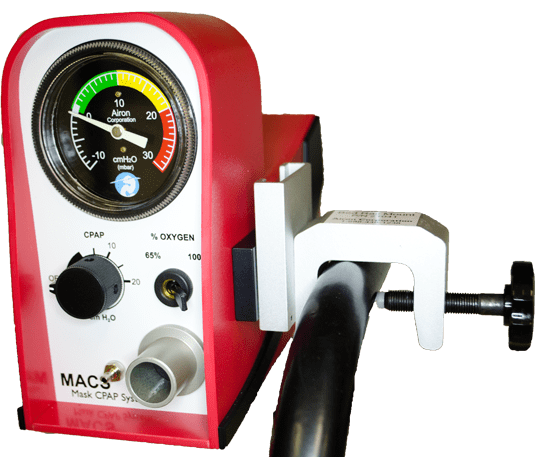

MACS Bed Rail Mounting Bracket

Bed Rail Mounting Bracket

The Bed Rail Mounting Bracket allows the MACS to be firmly attached to a horizontal tube, such as a bed rail. Tubes up to 1.25” (3 cm) can be accommodated. MACS slides in and out of the bracket which allows portable use. The bracket can be used with the Protective Boot.

P/N 21041
